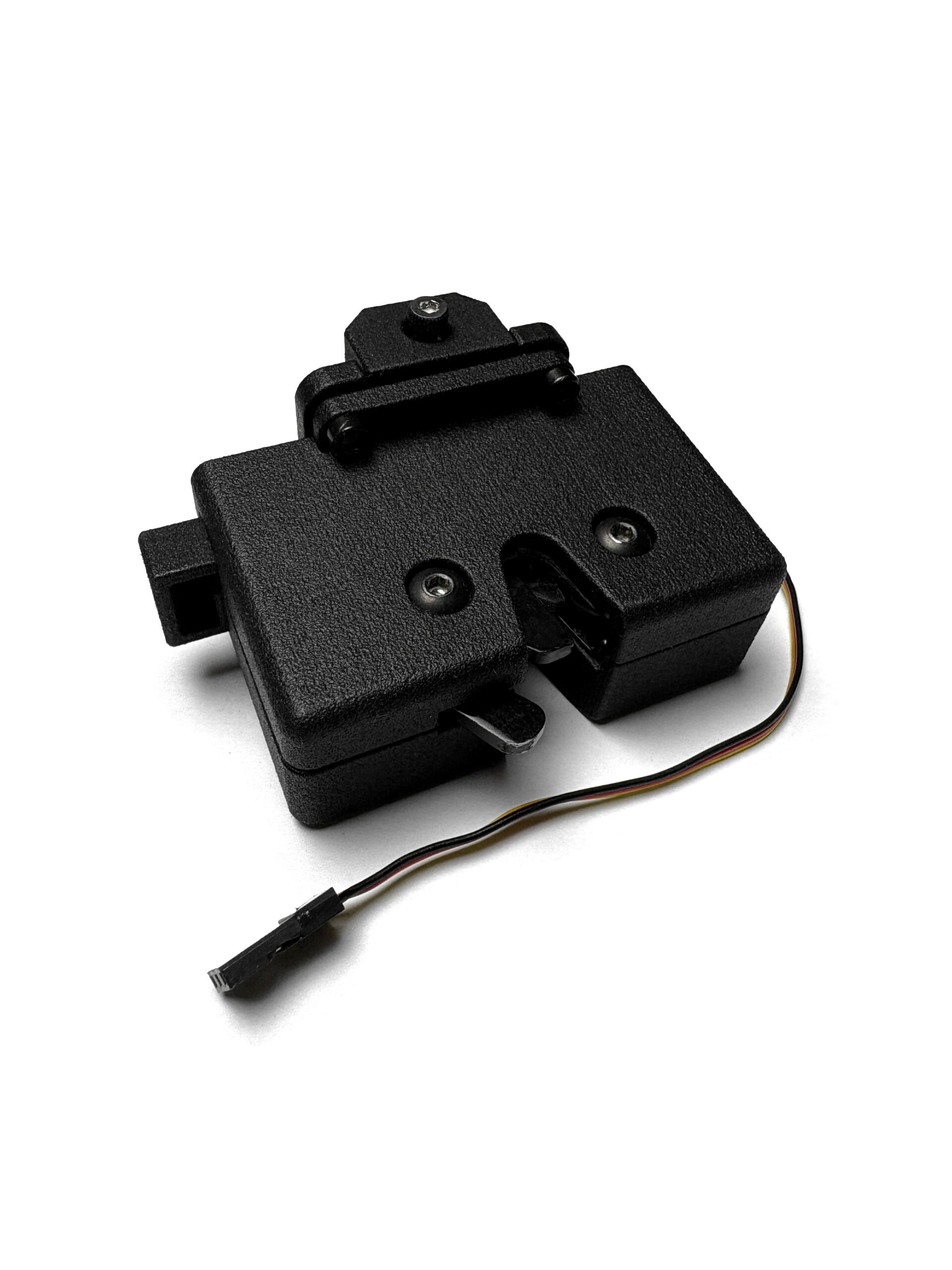

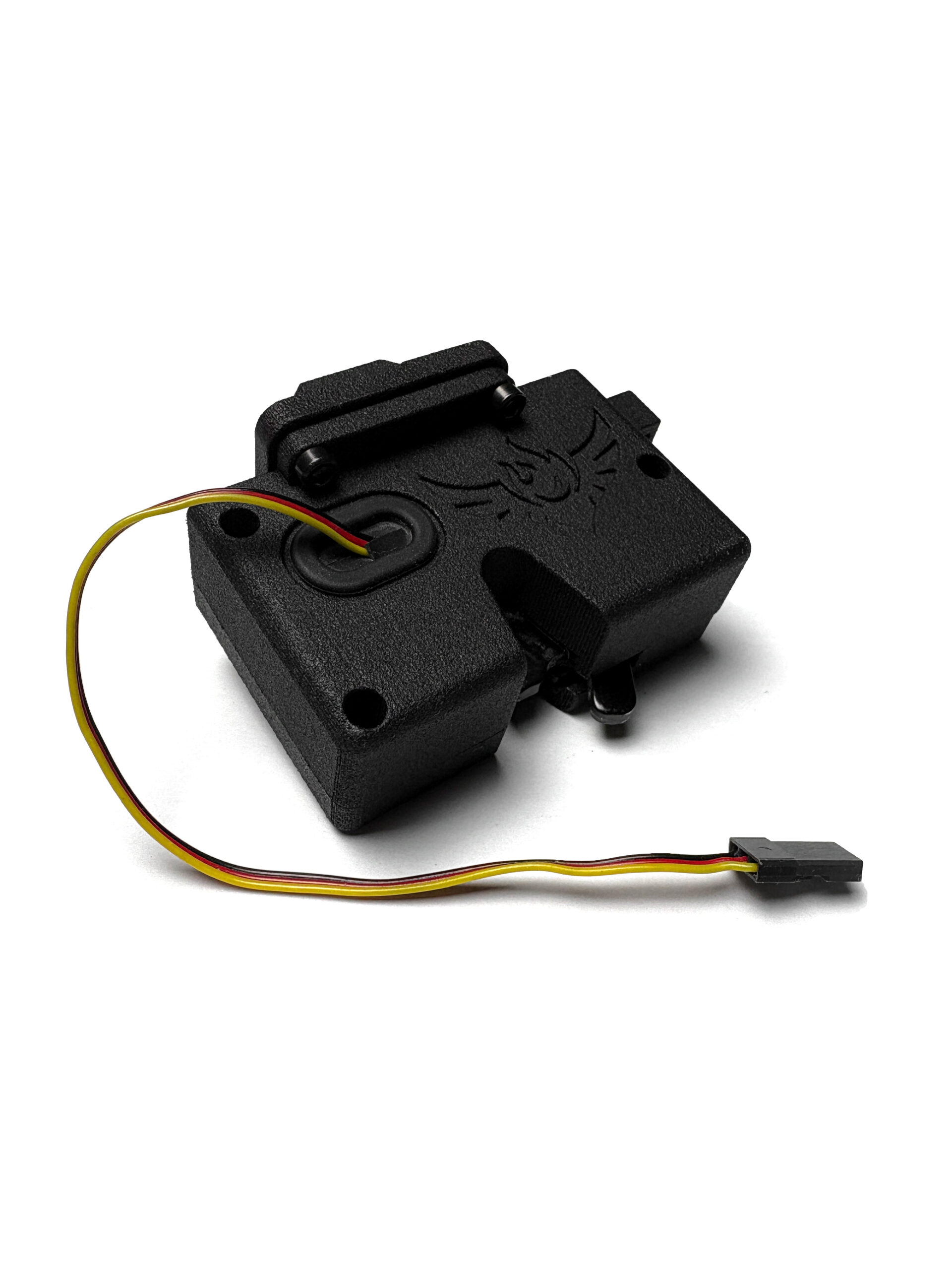

D.A. Dropper Mini

The D.A. Dropper Mini is a high-performance, Low SWaP (Size, Weight, and Power) payload release system designed for maximum versatility. Engineered to integrate seamlessly with everything from agile FPV drones to sUAS platforms like the Astro and Alta X*, the Mini Dropper provides a rugged, reliable solution for precision delivery in the field.

  • Power Free Loading and Unloading: Secure or swap payloads without powering on the drone or controller, preserving battery life and increasing safety.

  • Standalone: Use as a single, high-reliability dropper.

  • Modular: Integrate multiple units into the Drone Amplified Eco System for sequential or simultaneous multi-payload drops.

*Astro and Alta X requires Drone Amplified Integration.

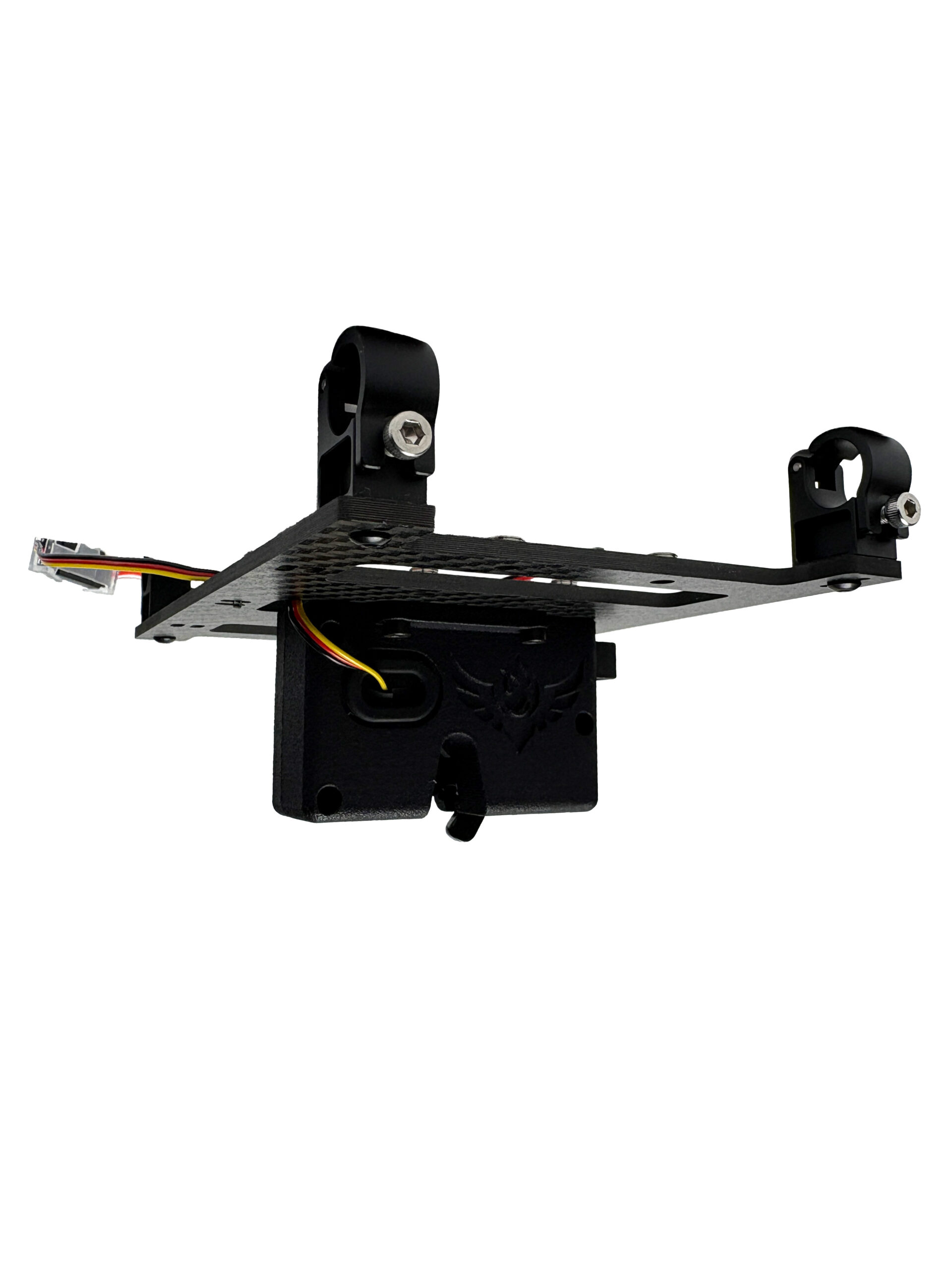

The Alta X Rail Mount is available as an optional add-on for an additional charge.

Add to Quote
Category:

Description

KEY SPECIFICATIONS

View Datasheet

Max-Payload Capacity:

Up to 20lbs (9kg)

Operating Voltage:

3.5V – 8.4V

Control Signal:

Pulse Width Modulation (PWM)

Release Mechanism:

Over-center latch

Loading / Unloading:

Manual quick-release (no power required)

Mounting:

Universal 30.5×30.5mm bolt pattern compatible with FPV frames and comes with picatinny rail mount. 12mm payload rails and Astro Max mounts also available.
